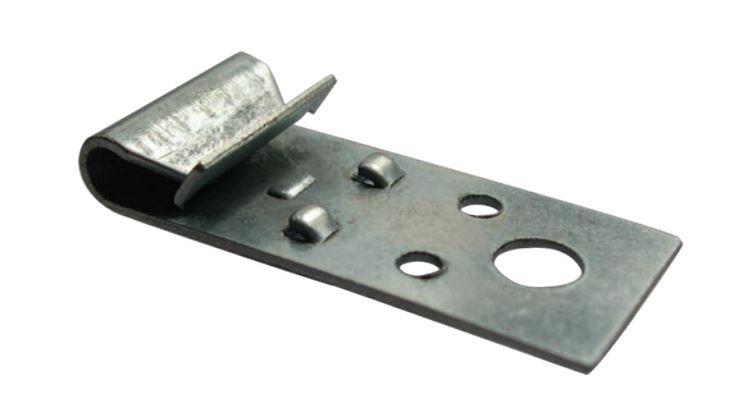

Vertical Flange Clamp

Purlin hanger incorporating threaded rod hanger. Design to hang threaded rod from Z purlins.



Fast, easy installation.

• High Strength.

For fixing lighting or suspended wire to steel profiles.



FEATURES and BENEFITS:

• All Steel.

• Series of strong barbs grip the flange.

• Angle trim may, for suspended ceilings, be bolted through the larger hole.



MATERIALS:

• Spring Steel.

• Zinc Passivated.



INSTALLATION GUIDE:

1. Place hook profile over the vertical of the purlin.

2. Tap in to place with a hammer.

3. Where possible we recommend using a WHSDZ12 to secure the clip.

4 Connect drop wire or chains through the eye of the clip.



TECHNICAL DATA:

Mean Ultimate Failure



Recommended Tensile*

0.74kN

Load

0.19kN



* The above recommended load is when the clip is not fixed by a self drilling screw. When fixed with a self drilling wafer head screw higher tensile values can be achieved. We highly recommend that site testing is undertaken so as an accurate recommended load can be calculated.
